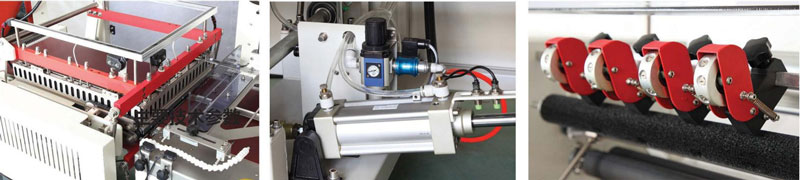

Features:
·Power belted discharge conveyor
·Dual magnet clamping
·Pin per feration hold punch
·Variable dwell seal time
·Variable conveyor time
·Seal head return cyinder
·Locking caster
·Heater line over heat compensator protection
Specifications
Model | HIJ-RS450 | Model | Hij-RS530 |
Power supply | 220V,50/60HZ,1.35KW | Power supply | 220-380V/50-60HZ.3P |
Max. Product Hight | 150mm | Heater power | 16KW (Adjustable) |
Seal size | L: ∞ W:400mm | Conveyor speed | 0-15m/min. |
Sealing Size | W+H≦450mm | Tunnel size | L1500*W450*H300mm |
Seal speed | 15m/min. | Shrink product size | W350*H200mm |
Pressure | 0.5Mpa | Conveyor loading | 30KG Max |
Machine size | 1650*800*1450mm | Machine size | L1800*W550*H1200mm |
Machine weight | 300KG | Machine weight | 150KG |
Shrink film | POF | Shrink film | POF,PVC,PP |
Features:
·Power belted discharge conveyor
·Dual magnet clamping
·Pin per feration hold punch
·Variable dwell seal time
·Variable conveyor time
·Seal head return cyinder
·Locking caster
·Heater line over heat compensator protection
Specifications
Model | HIJ-RS450 | Model | Hij-RS530 |
Power supply | 220V,50/60HZ,1.35KW | Power supply | 220-380V/50-60HZ.3P |
Max. Product Hight | 150mm | Heater power | 16KW (Adjustable) |
Seal size | L: ∞ W:400mm | Conveyor speed | 0-15m/min. |
Sealing Size | W+H≦450mm | Tunnel size | L1500*W450*H300mm |
Seal speed | 15m/min. | Shrink product size | W350*H200mm |
Pressure | 0.5Mpa | Conveyor loading | 30KG Max |
Machine size | 1650*800*1450mm | Machine size | L1800*W550*H1200mm |
Machine weight | 300KG | Machine weight | 150KG |
Shrink film | POF | Shrink film | POF,PVC,PP |
