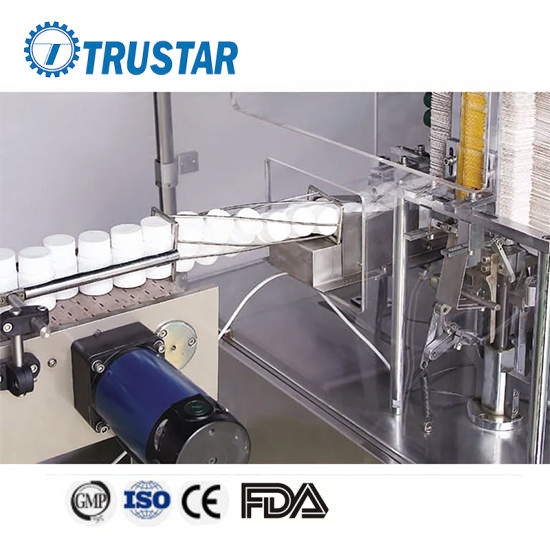

Automatic Round Bottle Cartoning Machine (JDZ-120P)

Quantity:

Applications:

This bottle cartoning machine is the new model which is based on integrating domestic and foreign Vanguard technology. It is a high technology product incorporates pneumatic photo electric mechanic Which improve by a large on performance of equipment and working efficiency, it realizes fast cartoning, Running steady and reliably under high speed working.


This machine is designed to finish the following working process, including:


Automatic feeding bottle(round, square bottle) into carton, Online bottle unscramble and feeding, leaflet Folding (1-4 folds), and feeding, leaflet detecting, carton opening and forming, products and Leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot Melt glue device. Automatically reject lacking of leaflet or product and finished product output.


Features:

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject the products that is lacking of product or leaflet.

5. Automatically trouble display, Alarm and count finished products.

6. Stable performance, easy operation and adjustment.


ItemParameters
Cartoning speed30-120 boxes /min
BoxQuality requirement250-350g/m2[Base on carton size]
Dimension range(L×W×H)(65-125)mm×(30-85)mm×(12-50)mm
LeafleQuality requirement60-70g/m2
Unfolded leaflet specification(80-250mm×(90-170mm
Fold range[1-4]Fold
Compressed airWorking pressure≥0.6mpa
Air consumption120-160L/min
Power supply220V  50HZ
Main motor power0.75kw
Machine dimension(L×W×H)2300mm×1140mm×1800mm
Machine weight1200kg
