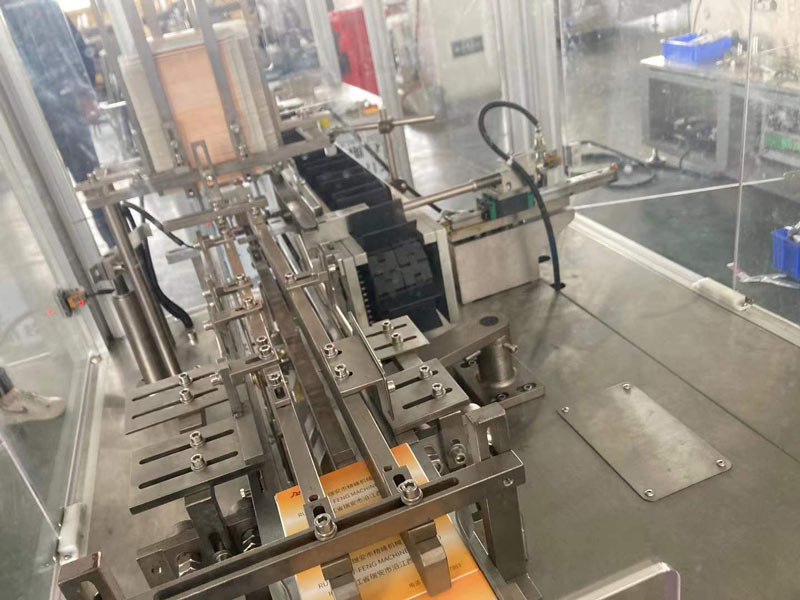

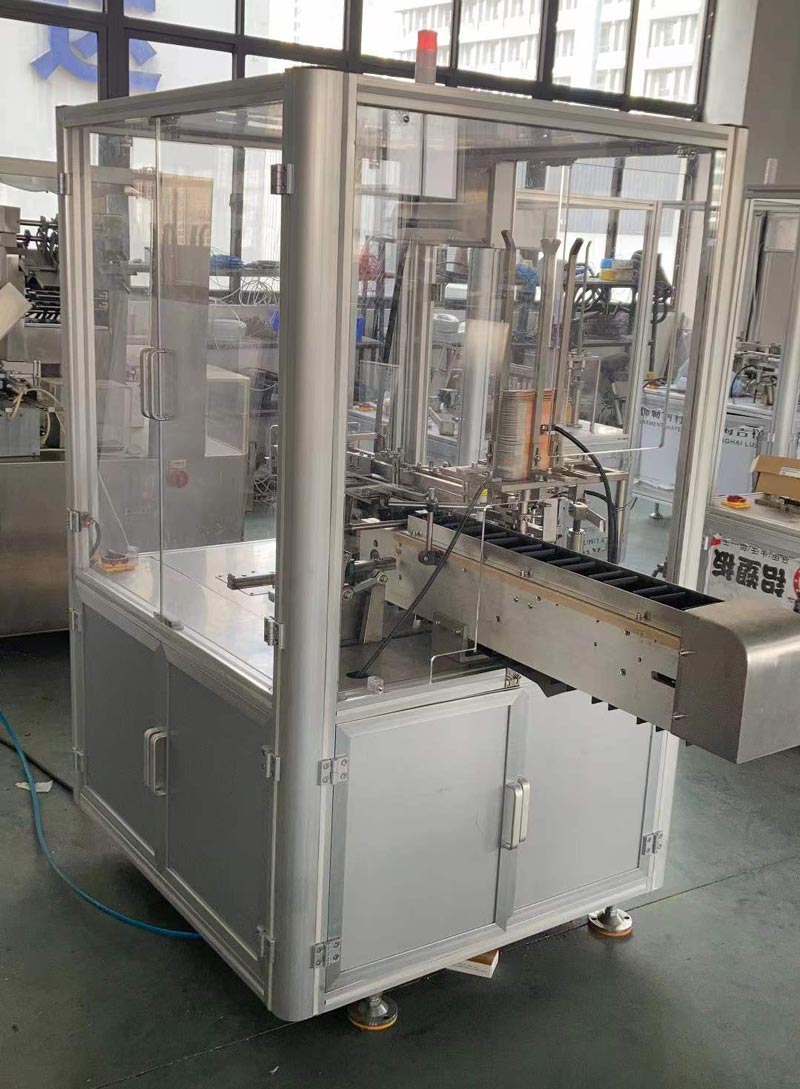

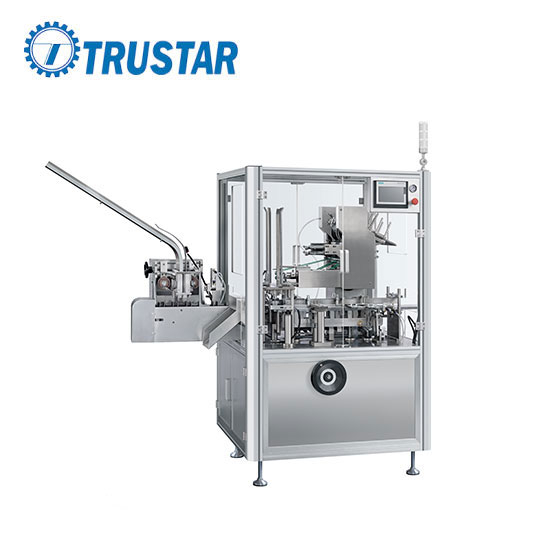

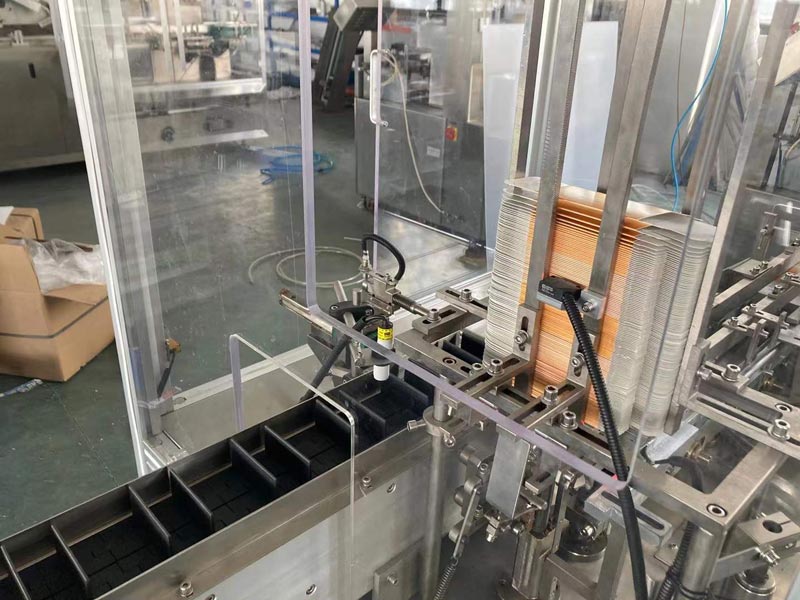

This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic- photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1 -4folds)and feeding,leaflet detecting, canton opening and forming, product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic- photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1 -4folds)and feeding,leaflet detecting, canton opening and forming, product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Performance and Features
International famous brand of electrical component such as PLC touch screen frequency inverteres, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance, operation is easy.
Main technical parameters
Encasing Speed | 30-120 Cartons/min | |
Carton | Quality requirement | 250-350g/㎡ Base on carton Size |
Dimension range(L×W×H) | (65-155)mm × (30-85)mm × (14-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification(L×W) | (80-250)mm × (90-170)mm | |
Fold range(L×W) | 【1-4】 Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120- 160L/min | |
Power supply | 380V 50HZ | |
Motor power | 0.75kw | |
Machine dimension | 2150mm × 1140mm × 1800mm | |
Machine weight | About 1100kg | |
This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic- photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1 -4folds)and feeding,leaflet detecting, canton opening and forming, product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic- photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1 -4folds)and feeding,leaflet detecting, canton opening and forming, product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Performance and Features
International famous brand of electrical component such as PLC touch screen frequency inverteres, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance, operation is easy.
Main technical parameters
Encasing Speed | 30-120 Cartons/min | |
Carton | Quality requirement | 250-350g/㎡ Base on carton Size |
Dimension range(L×W×H) | (65-155)mm × (30-85)mm × (14-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification(L×W) | (80-250)mm × (90-170)mm | |
Fold range(L×W) | 【1-4】 Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120- 160L/min | |
Power supply | 380V 50HZ | |
Motor power | 0.75kw | |
Machine dimension | 2150mm × 1140mm × 1800mm | |
Machine weight | About 1100kg | |
