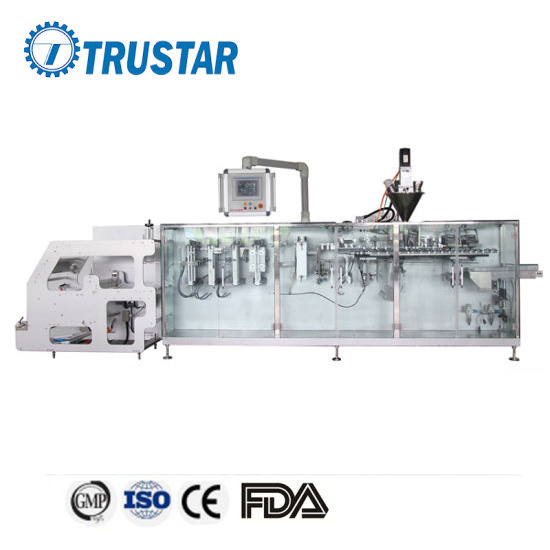

Horizontal High Speed Sachet Packing Machine for Seasoning Powder, Herbal Product, Pharmaceutical

Quantity:


Small Doypack with Spout Horizontal Packing Machine HMK1400
Horizontal High Speed Sachet Packing Machine for Seasoning Powder, Herbal Product, Pharmaceutical

Feature:

1. Versatility strong, one machine can be realized powder, liquid, granules, paste different types of packaging materials.

2. Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.

3. Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance,convenience of regulation.

4. Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.

5. Finished Product Sealing System: Fully automatic production facility that finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.

6. Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electricalintegration of the entire frame is embodied perfectly.

Technical Parameter:

Machine technical DATA:
HMK-1400 Simplex
Machine operation HFFS Horizontal form fill and seal
Technology concept Pouch forming Form the reel
Pouch transport system intermittent
Construction Machine frame SS304
parts SS304
Parts in contact with product Stainless steel SUS304
Reel Reel diameter 500mm
Reel Width 600mm
Reel core 76mm
dimensions Length×width×height 5000×1100×2000mm
weight
2500Kg
Pouch dimensions Length×width×height
Minimum size Maximum size
FLT-1

FLT-2

STU-1 60×110 180×250×100
STU-2

Packaging speed
(pouches per minute)
And pouch volume
(ml)



Speed maximum(ppm) Volume maximum(ml)
with 3 and 4 side seals FLT-1

FLT-2

With doypack STU-1 60 1000
STU-2

Consumption Electrical
11kw
Air consumption
50L/min 0.6Mpa
Electrical Data

200-460V/50-60Hz/N+G(According to customer requirements customization)
