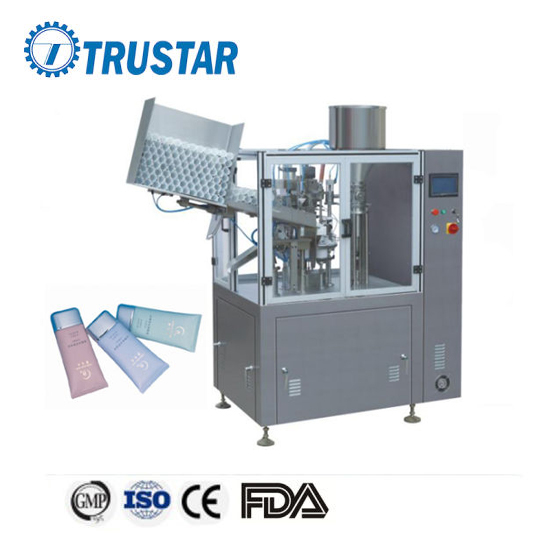

NF60A Automatic Tube Filling and Sealing Machine

Quantity:
1.  Machine Brief
This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.


2.  Machine Features

1) Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
2) Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.
3) High precision photoelectron register, reduced the chromatic aberration scope.
4)  Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5) Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; war n ing if tube error position, pressure too low, automatic stop machine if open the protective door.

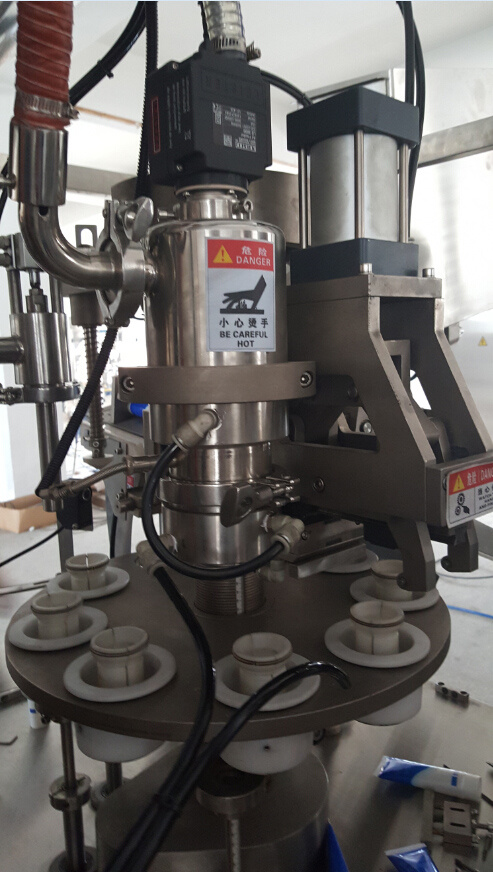

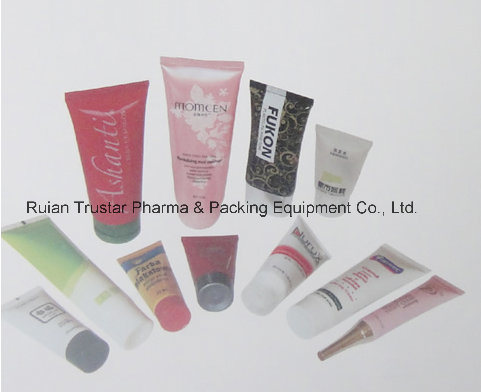

Machine parts and sample photo
NF60A Automatic Tube Filling and Sealing Machine

NF60A Automatic Tube Filling and Sealing Machine


NF60A Automatic Tube Filling and Sealing Machine

About us

1.  Our company

Trustar Pharma & Packing Equipment Co.,Ltd Culture

Work style: solid credibility, authority and reliable;
Enterprises purpose:integrity services to customers, a service win customers;
Teamwork:win-win team the importance of care and mutual benefit, work with

Progressive;
Market concept:the interests of users is always what Trustar pursuit;

Dealers coexistence with the principles:mutual benefit and common development;

2. Frequently Asked Questions (FAQS)

what if there are some complicate problems about machines after buying them?

contact with us by email or telephone, even we can go to visit you with our
technician if it necessary.

what's your advantage about your products?

good quality with favorable price, produce equipment according customer's
requirements.

What are kinds of pharma machine fall within the scope of your business activities?

Main in Pharmaceutical solid dosage machine from RMG,Fluid Bed Dryer,Tablet
Press,Tablet Sugar/Film Coating   machine,Blister packing machine,cartoner
and etc.

Other questions or comments?

Please contact us online or call us.

Technical Parameters:

1Product capacity30-50pcs/min
2Filling volume5-250ml
3Filling accuracy≤±1%
4Tube length50-240
5Tube diameterΦ10- Φ50
6Tube materialPlastic compound tube
7Working pressure0.5-0.6MPa
8Compressed Air Consumption1.1m³/min
9Motor Power1.1KW
10Overall dimension1950*1000*1800mm
11Machine weight850Kg


Main Electric Parts List:

No.NameSpecificationBrand
1Pressing Guiding Main Component
CHINA
2Low Voltage Protection
CHINA
3Pneumatic Componentsome from FESTOAIRTAC, TAIWAN
4Control ModePLC+Touch Screen
5PLCDVP32EH00T2DELTA, TAIWAN
6Frequency inverterVFD015M43BDELTA, TAIWAN
7Touch ScreenTK6070IKWE!NVIEW, CHINA
8CoderE6B2-CWZ6COMRON, TAIWAN
9Temperature ControllerTAD4848DELTA, TAIWAN
10Filling detect Photo electric cellALJ12A3CHINA
11Total Power Switch etcHZ12-25CHINT, CHINA
12Color Code SensorLX-101JAPAN
13Hot Air GeneratorTYP-3000LEISTER, Switzerland
